Eco Ground Mount Kit

Eco Ground Mount Kit

166 reviews
Regular price $200.99 Sale price $149.99 Save $51

You Won't Find a Lower Price

But in the rare case you do, we'll still beat it by $7.50.
Start a chat here to organise.

Step 1: Choose Your Options*

Classic Cream (Standard Soil/Grass)
Classic Cream (Plated Concrete Slab+$110)
Woodland Grey (Standard Soil/Grass)
Woodland Grey (Plated Concrete Slab+$110)
Monument (Standard Soil/Grass)
Monument (Plated Concrete Slab+$110)
Surfmist (Standard Soil/Grass)
Surfmist (Plated Concrete Slab+$110)
Shale Grey (Standard Soil/Grass)
Shale Grey (Plated Concrete Slab+$110)
Cottage Green (Standard Soil/Grass)
Cottage Green (Plated Concrete Slab+$110)
Tax included. Shipping calculated at checkout.

Key Features

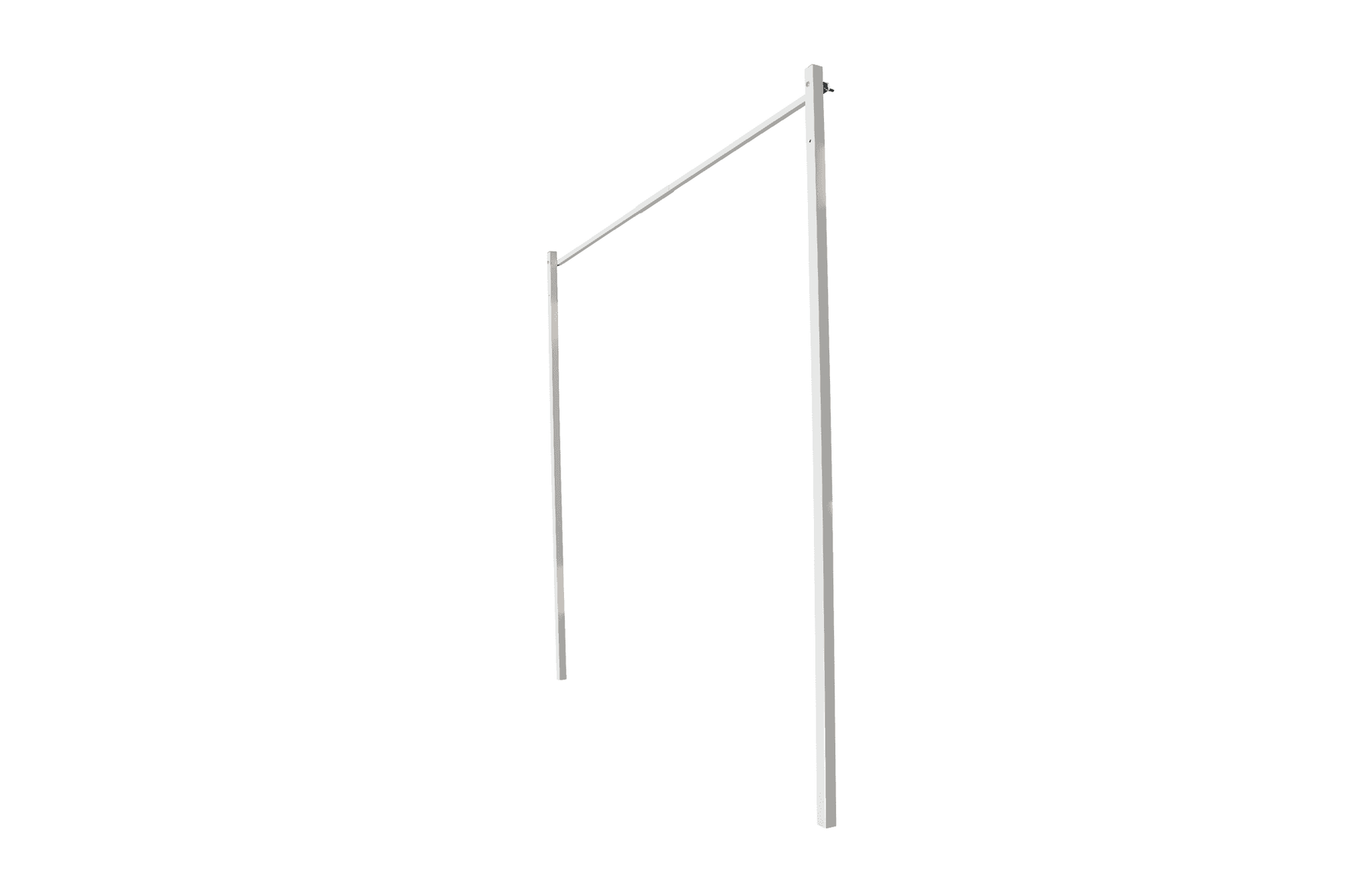

Eco Ground Mount Kit

Not for Individual Sale - Can only be ordered with clothesline or posts

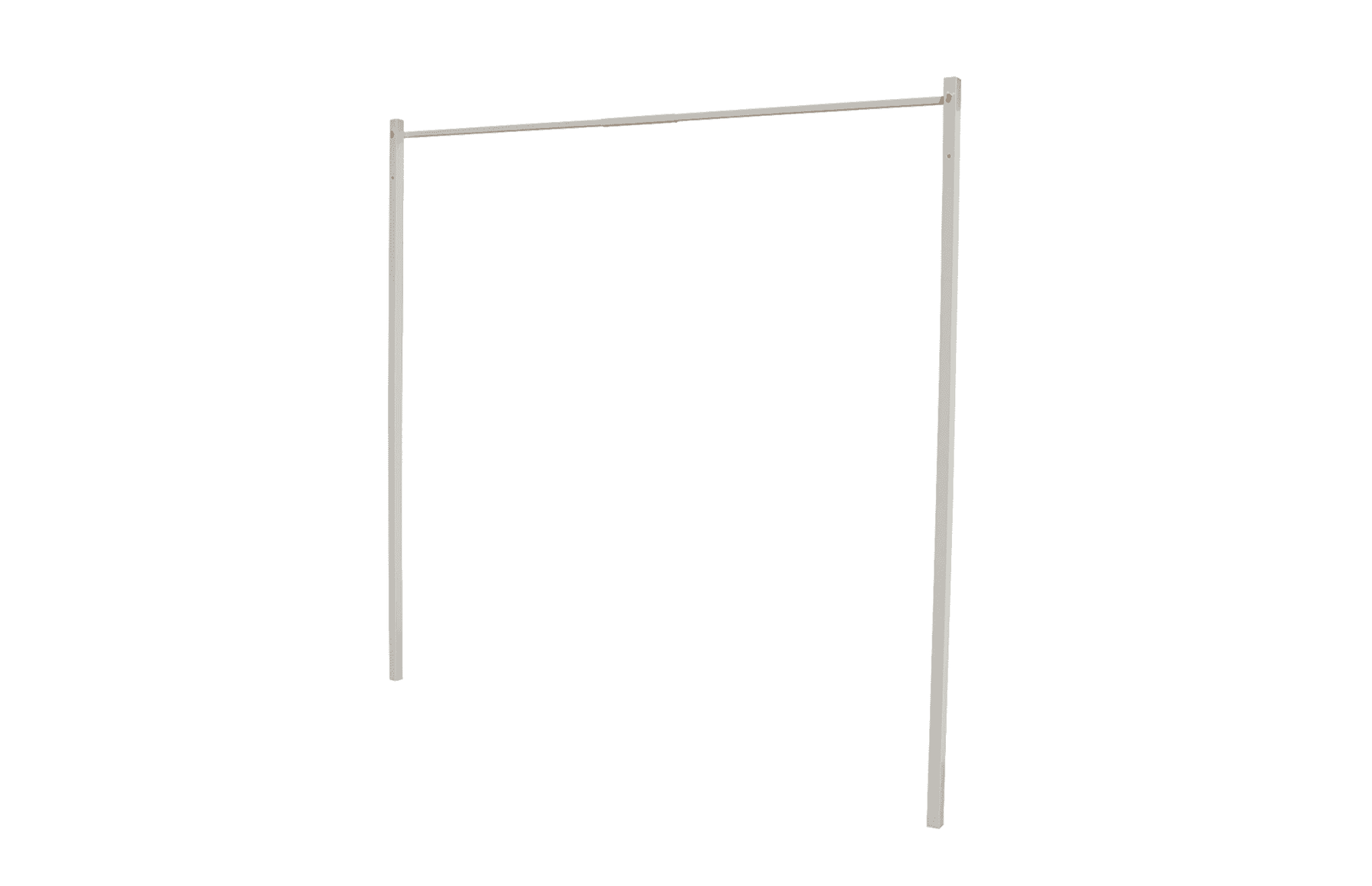

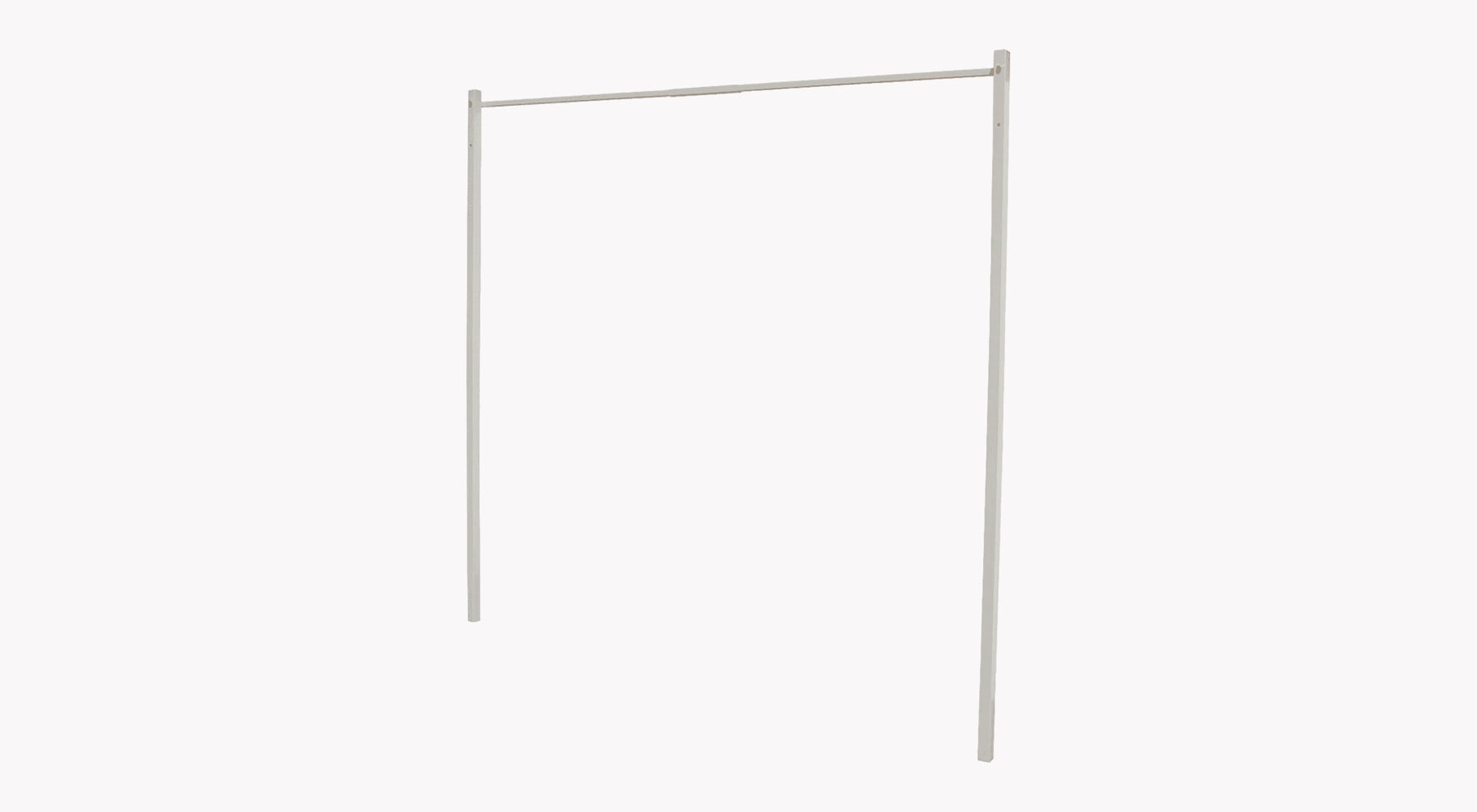

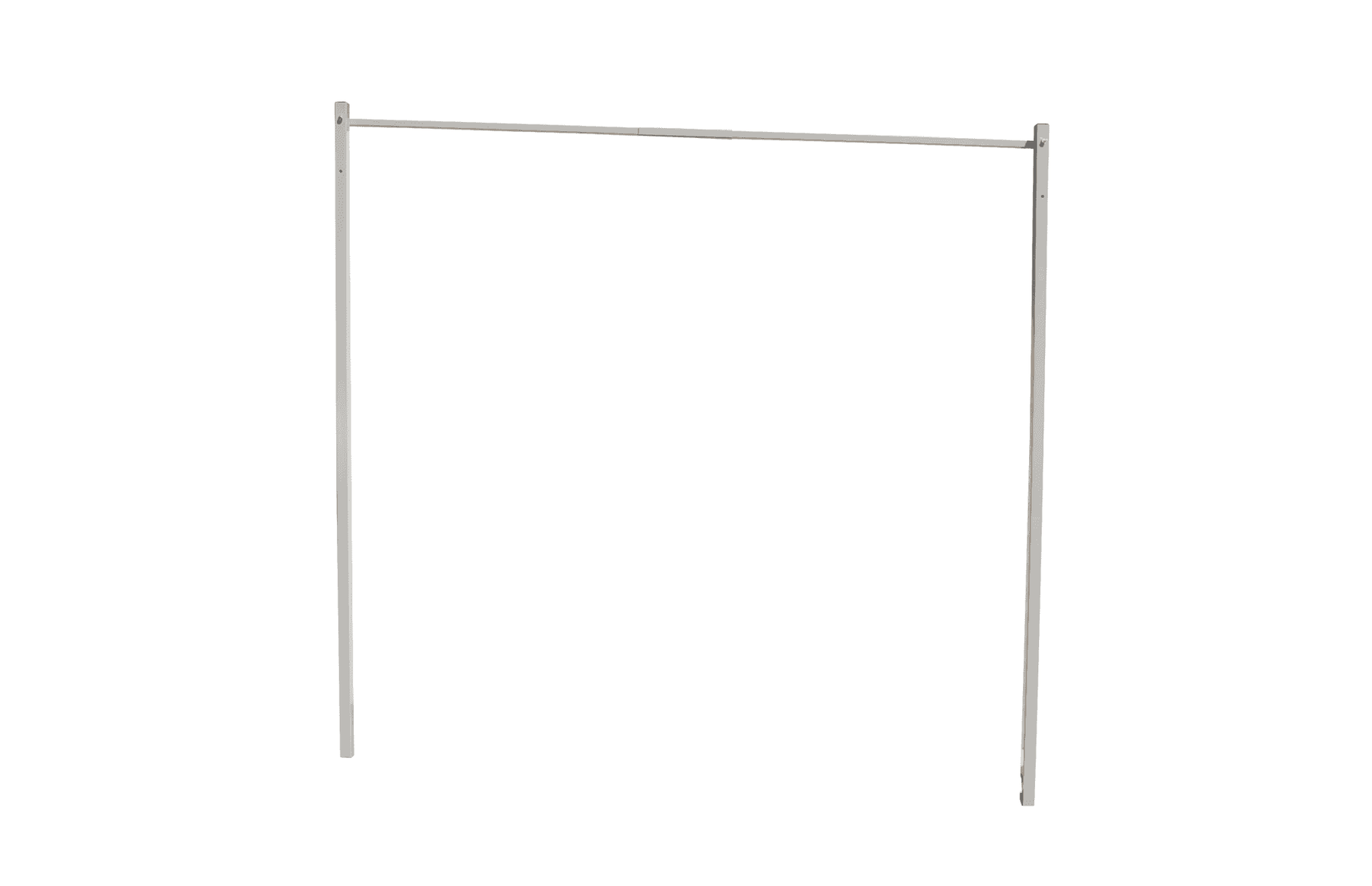

Eco Ground Mount Kit is for the ground mounting of Eco folding frame and foldown clothesline models Eco 120, Eco 150, Eco 180, Eco 210, Eco 240, Eco 270, and Eco 300.

The ground mount kit allows for these types of folding frame clotheslines to be installed free standing anywhere around your home or garden.

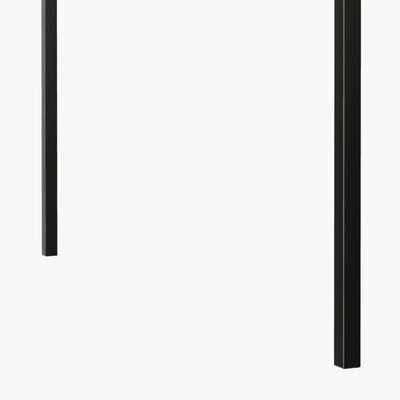

Installation requires two holes dug with 200-250mm diameter and approximately 400-500mm deep depending on desired finished height. Pre-mix cement is used to fix the posts into soil.

The foldown frame rests against the upright posts when situated in the folded position.

Updated: 1 August 2021

Full Specifications

Country of Manufacture
Powder-Coated, Galvanised Steel

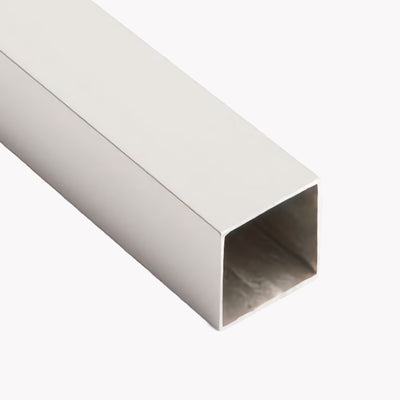

Standard Post Dimensions
2150mm x 40mm x 40mm

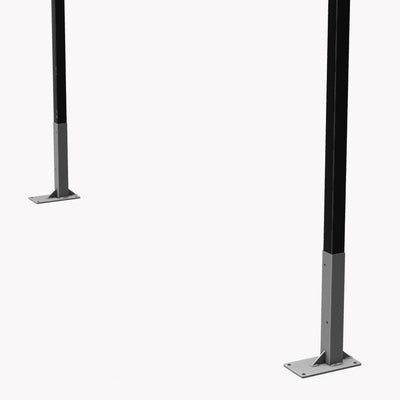

Suitable for Installation on Concrete Slab
Yes, Plated Ground Mount Kit is Available

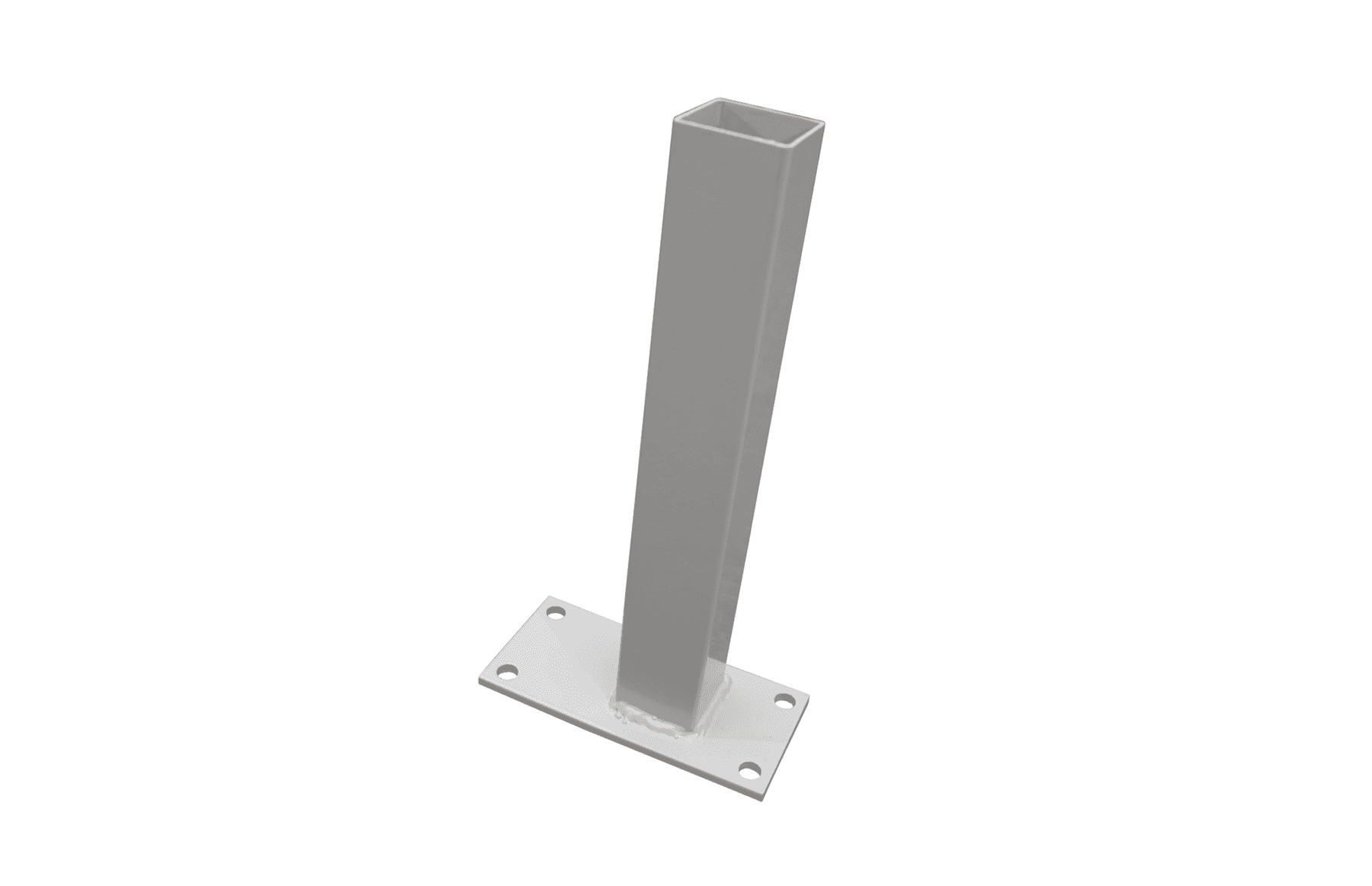

Plated Post Dimensions
1800mm x 40mm x 40mm
Welded Plated Dimensions
180mm Long x 85mm Wide x 5mm Thick, 300mm High
Dynabolt Drill Hole Dimensions for Plates
10mm Holes to Suit 8mm bolts

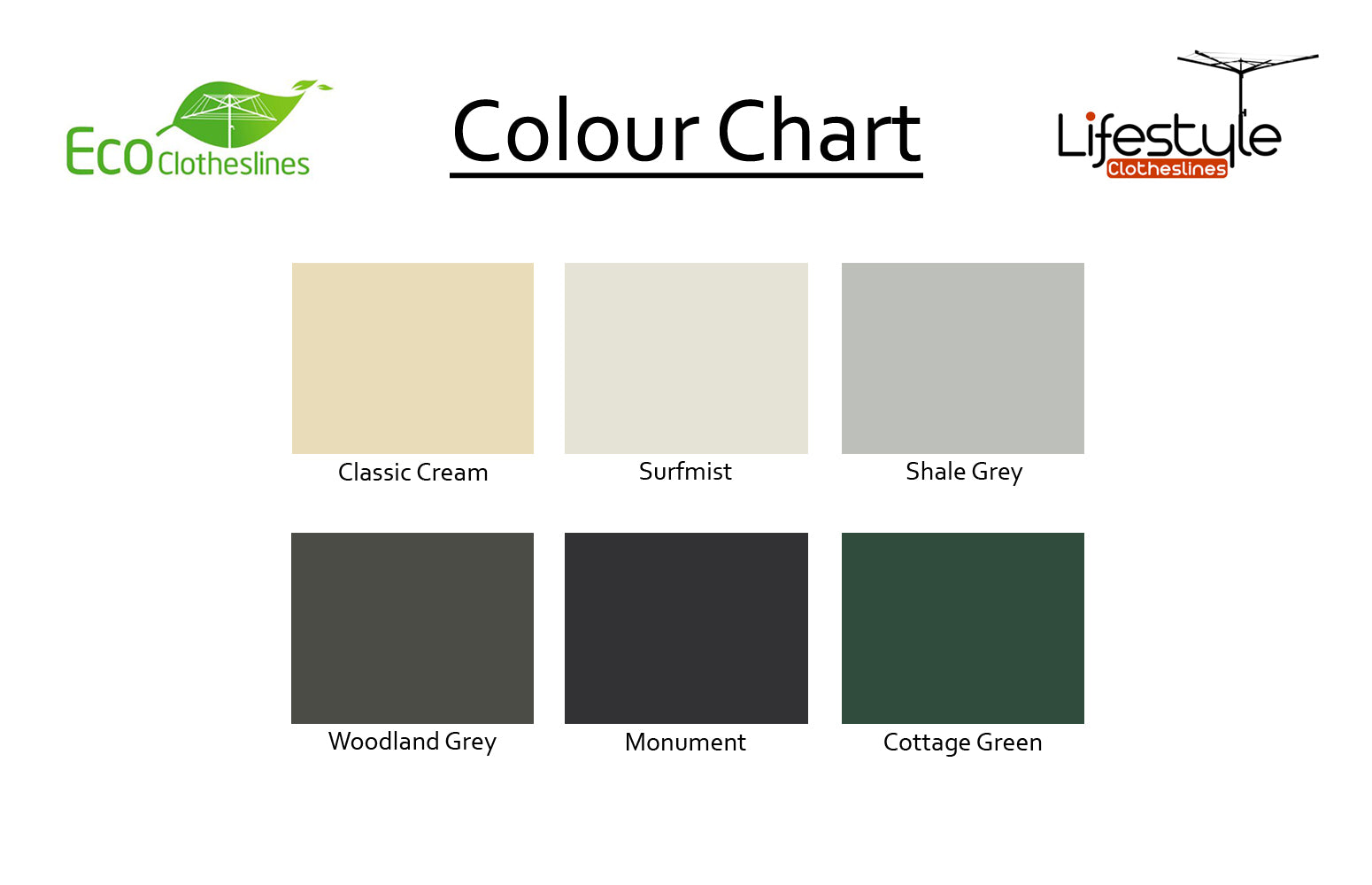

Available Colours
Classic Cream, Woodland Grey, Momument, Surfmist, Shale Grey, Cottage Green

View in 3D

Customise using the options provided, rotate with click & drag, or zoom via mouse scroll or two fingers on mobile.
